Crane Wheel - Flagcrane


Crane wheels are usually made of durable steel or cast iron. They are strong and durable enough to carry and transport weight. These wheels travel on rails with drive provided by an electric or hydraulic system, enabling the crane to move laterally within the work area.

Electric system crane wheel is usually equip with electric motors. It drives the wheels from power. This drive method provides high precision and control. Cranes are capable of moving with high precision.

Hydraulic system crane wheel is driven from the hydraulic motor. Hydraulic systems generally provide greater torque and power output. The crane is capable of moving under the condition of large traction force.

     Mail Us:info@cranespreader.com

Why Choose Flagcrane As Your Crane Wheels?

Flagcrane is a professional group company integrating crane design, manufacturing, sales, installation, after-sales and maintenance. which is located in Changyuan Crane Industrial Park, Henan Province, with a registered capital of 560 million yuan, covering an area of more than 850,000 square meters and a modern heavy steel production workshop of more than 400,000 square meters. There are more than 1,600 employees, including more than 200 middle and senior professional technicians and management personnel.

Flagcrane's equipment has passed ISO, CE, SGS, SABER and domestic and foreign other professional certification.

The spreaders manufactured by Flagcrane meet the standard and non-standard design and manufacture, and provide suitable solutions for different customers.

Features of Flagcrane Crane Wheels

  • Crane Wheel Application: Overhead crane, gantry crane, crane trolley, transfer car, heavy-duty industry, Port crane, Steel factory, etc.
  • Crane Wheel Heat Treatment: Quenching and Tempering
  • Crane Wheel Coating: Black Oxide + Rust-proof oil
  • Crane Wheel Inspection: A third-party inspection is possible if required.
  • Crane Wheel Material: 42CrMo4, AISI4140, 41Cr4, A504, SSW-Q1R, 65Mn, 1045, 1055, 1060, 1070, and ductile iron 400, 500,600,700 etc.
  • Crane Wheel Dimension: φ250, φ350, φ400, φ500, φ600, φ700, φ800, φ 1000, φ 1200 or Customized overhead crane wheels and gantry crane wheels are supplied with the specifications.
  • Crane Wheel Quality Control: All the required crane wheel tests are applied including UT, MT, RT, PT, chemical composition test, mechanical property test, etc.
  • Crane wheel Quenching Depth: ≥20mm
  • Crane wheel Competitive Advantage: Quality control and management of the entire manufacturing process, including ingot smelting, forging, heat treatment, machining, and final inspection prior to delivery.
  • Crane wheel Standard: ASTM, ASME, DIN, JIS, ISO, BS, API, EN, GOST, etc
  • Crane wheel Certificate: All the testing certifications are provided if required including Raw material certificate(material chemical composition), Heat treatment sheet report, Dimension inspection report,and UT/MT test report, etc.
  • Crane wheel Packing: Seaworthy plywood packaged on steel pallets or customized.
  • Crane wheel Delivery Date: 15~30 working days
  • Crane wheel Certification: All our crane wheels have obtained CCC, ISO9001, and CE certification.

Application of Flagcrane Crane Wheels

Crane wheels are are various. such as: single rim wheel, double rim wheel, non-rim wheel, and other nonstandard wheels.

Its mainly use in all kinds of lift machines, such as single girder overhead crane, double girder overhead crane, gantry crane, and port crane etc.

Crane Wheels Options




Roller type crane wheel

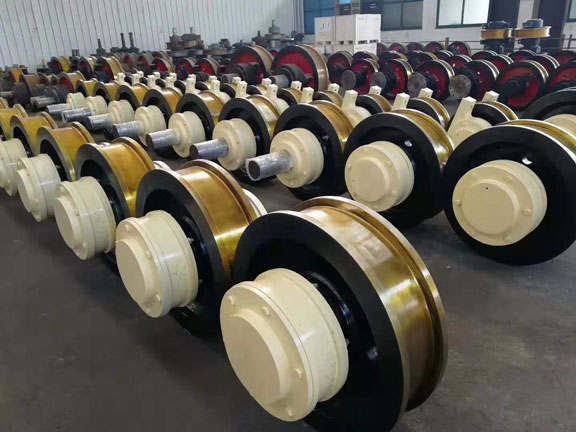

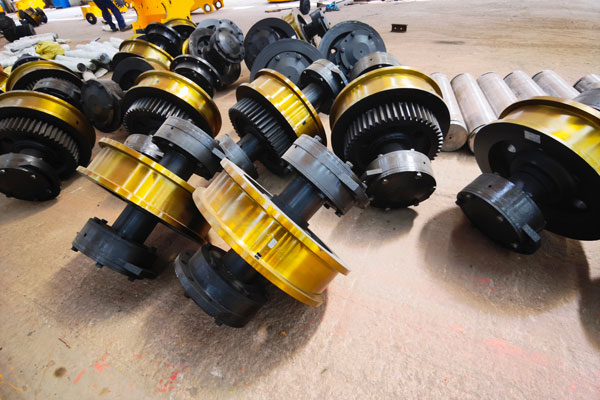

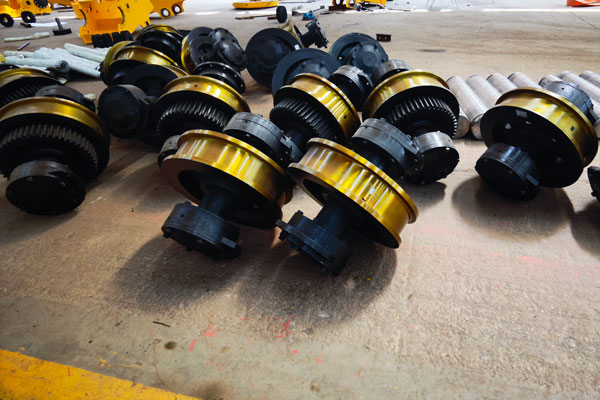

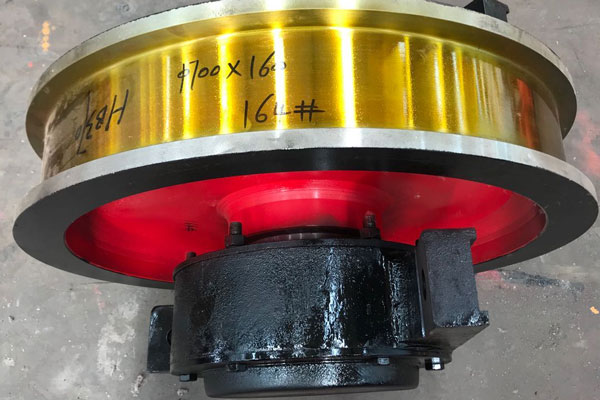

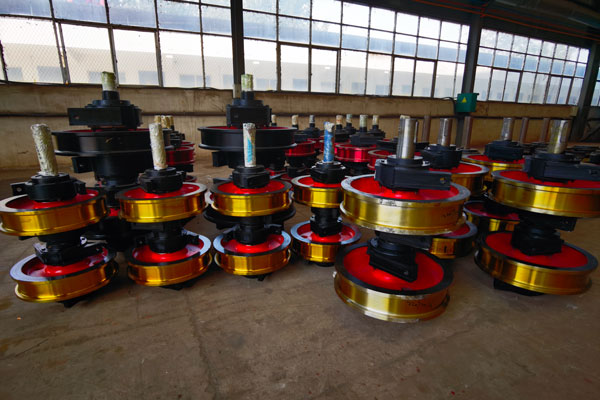

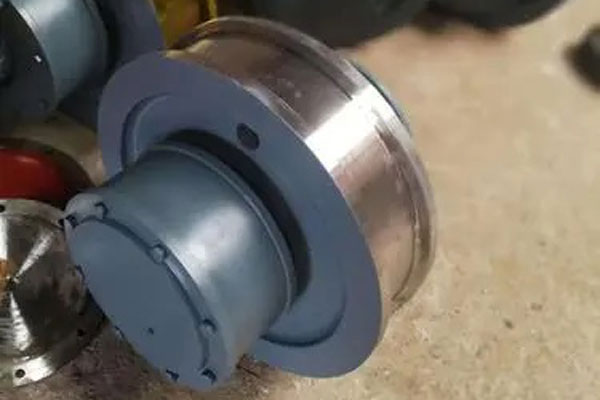

Flange type crane wheel

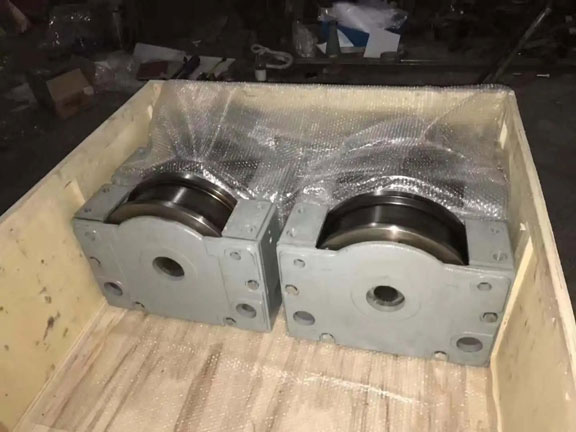

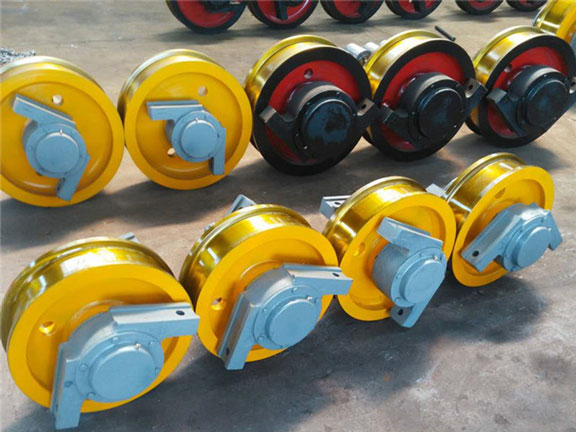

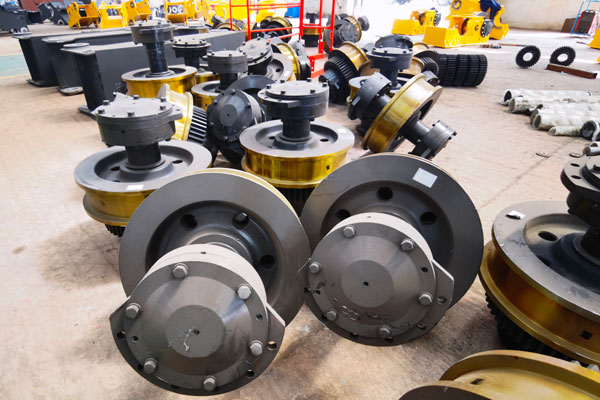

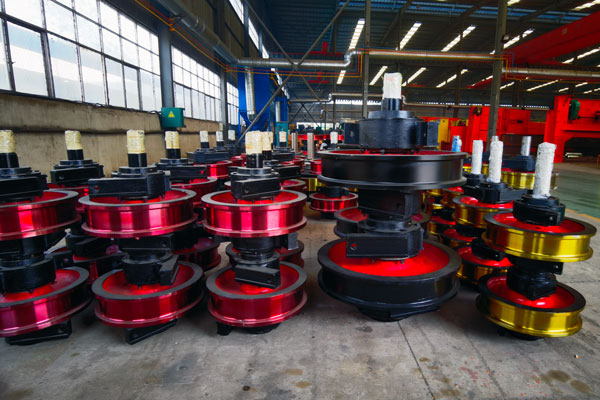

Crane wheel block


Material:

4140/SCM440/42CrMo,ssw-QIR/65#steel,65Mn,50SiMn,QT800,ZG35SiMn,SSW-Q1

Dimension:

φ250, φ350, φ400, φ500, φ600, φ700, φ800, φ 1000, φ 1200 or as your require

Rated Loading Capacity:

1~160 ton

Process:

Casting

Quality Control:

UT,MT,RT,PT,chemical composition test,mechanical property test,etc.

Heat Treatment:

Quenching and Tempering

Quenching Depth:

no less than 20mm

Coating:

Black Oxide+Rust-proof oil

Inspection:

Besides our in-house inspecion, you could also choose a third party inspection.

Standard:

ASTM, ASME, DIN, JIS, ISO, BS, API, EN,GOST,etc

A Standard Crane Wheels Will Be Produced In 20 Days.

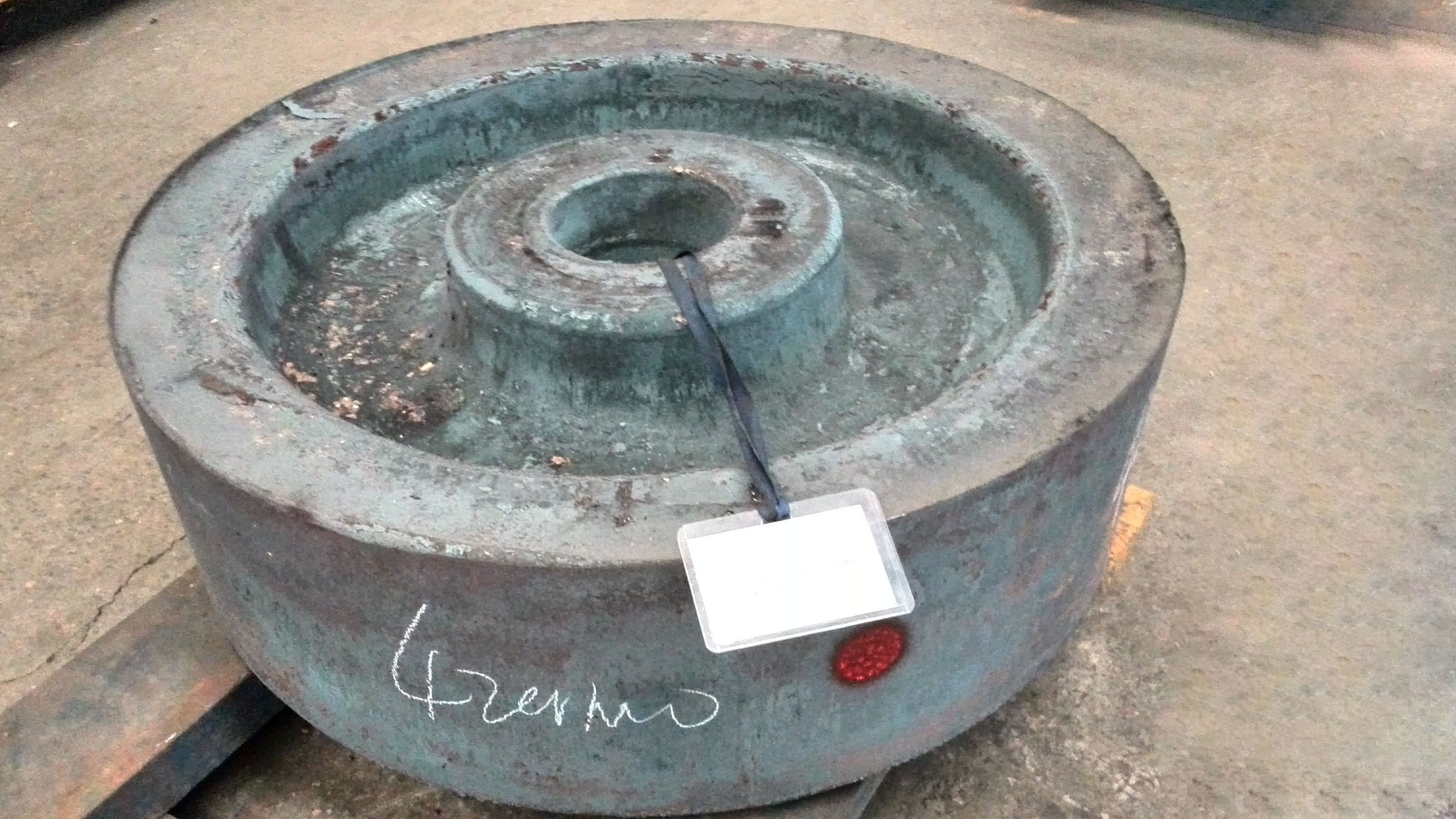

1. Forming 2. Preprocessing 3. Heat treatment

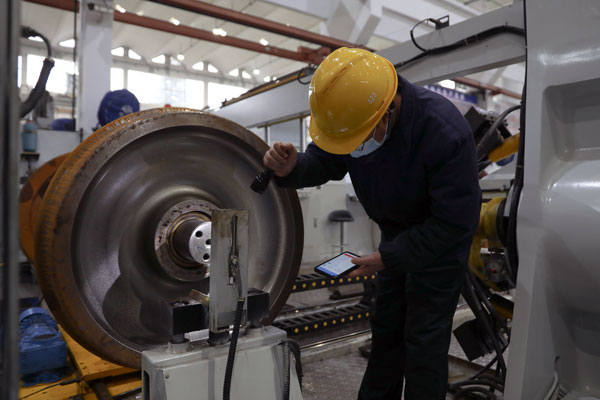

4. Testing 5. Finishing 6. Spraying
1: How to place an order?

Answer: Tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible.

2: What is your price?

Answer: The price depends on your requirements for the equipment. According to the model, the price is relatively different.

3: How should I pay?

Answer: We accept wire transfer, letter of credit, etc.

4: How long do I need to order?

Answer: The standard vacuum lifter spreader, the delivery time is 7 days, custom-made orders, no stock, you need to determine the delivery time according to the situation, if you need urgent items, please contact customer service.

5: About the guarantee

Answer: Our machines enjoy a complete 1-year warranty, and important parts enjoy a 5-year warranty.

6: Mode of transportation

Answer: You can choose sea, air, rail transportation (FOB, CIF, CFR, EXW, etc.)
