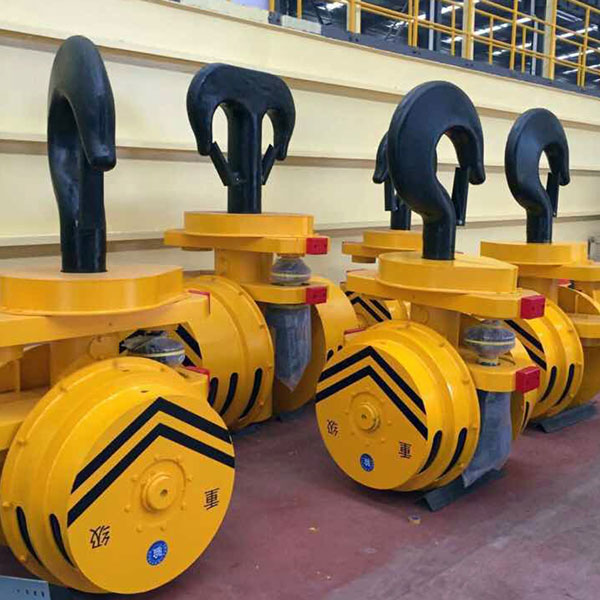

Crane Hook Block


Flagcrane has developed series of crane hook block in accordance with the latest requirements and techniques FEM 1001 and DIN STANDARD 15020.

1. The crane hook block is generally made of DG20 steel and DG34GrMo alloy steel, which is forged, pressed, annealed and then machined. It has the characteristics of high strength, good plasticity and toughness.

2. The crane hook block is generally made of A3, 20# or 16Mn steel plate, the thickness is not less than 20mm, without sudden break, and the reliability is high.

3. Flaps of hook block are generally used in places with large tonnage in high temperature environments.

4. . All hooks will be equipped with safety latch to prevent the load from unhooking.

5. Ratio of pulley diameter and wire rope diameter is greater than 20 to ensure service life of rope.

6. A protective pad is set at the hook mouth to ensure that the hook mouth will not be damaged by the friction of the spreader and prolong its service life. The protective pad can be replaced when it is damaged.

     Mail Us:info@cranespreader.com

Why Choose Flagcrane As Your Crane Hook Block?

Flagcrane is a professional group company integrating crane design, manufacturing, sales, installation, after-sales and maintenance. which is located in Changyuan Crane Industrial Park, Henan Province, with a registered capital of 560 million yuan, covering an area of more than 850,000 square meters and a modern heavy steel production workshop of more than 400,000 square meters. There are more than 1,600 employees, including more than 200 middle and senior professional technicians and management personnel.

Flagcrane's equipment has passed ISO, CE, SGS, SABER and domestic and foreign other professional certification.

The spreaders manufactured by Flagcrane meet the standard and non-standard design and manufacture, and provide suitable solutions for different customers.

Features of Flagcrane Crane Hook Block

1. Special heat-treated forged steel hook block with latch.

2. Heavy duty worm gear reducer.

3. Tapered roller bearing with grease fittings.

4. Forged steel pulleys with hardened rope grooves.

5. Easy maintenance.

6. Direct spur gear transmission.

Application of Flagcrane Crane Hook Block

  • The single hook is simple to manufacture and easy to use, but the force is not good, and it is mostly used in the workplace with a lifting capacity of less than 80 tons.
  • When the lifting capacity is large, double hooks with symmetrical forces are often used.
  • Laminated hooks are riveted from several cut and formed steel plates. When individual plates have cracks, the entire hook will not be damaged. The safety is good, but the self-weight is large. Most of them are used for large lifting capacity or lifting molten steel ladle on the crane. The hook is often impacted during the operation and must be made of high-quality carbon steel with good toughness.

Crane Hook Block Options

Single Hook Block

European Hook Block

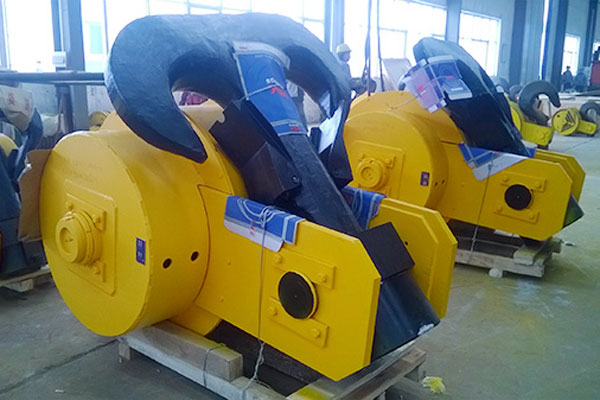

Double Hook Block

laminated hook

Heavy Duty Hook

Rotary Hook Block

Ex-proof Hook Block

Metallurgical Hook Block

Insulation Hook Block





Specification

Parameters

Install the wire rope

Weight
(Kg)

A

B

H

E

G

L

L1

L2

C

U

ΦD1

ΦD

diameter(mm)

Winding number(pieces)

3.2T

775

350

420

320

150

220

/

/

50

65

/

300

11-14

4

80

5T

858

370

480

320

184

240

/

/

65

85

/

350

11-14

4

100

10T

1080

378

526

410

243

/

92

/

90

120

380

250

11-14

6

200

16T

1330

506

660

485

307

/

172

/

115

150

500

310

14-20

6

330

20T

1415

524

653

510

333

136

93

/

130

170

/

500

16-20

8

460

32T

1740

604

780

620

420

155

105

/

160

210

/

610

18-22

8

845

50T

1965

750

815

710

510

170

109

/

205

270

710

610

20-22

10

1500

75T

2335

970

1012

930

600

185

135

/

250

320

800

500

26-32

10

2500

100T

3130

1360

1162

1100

955

350

131

200

270

355

1000

800

28-34

12

4200

200T

3548

1617

1090

1185

1298

159

264

/

/

340

1100

900

30-38

16

9100

A Standard Crane Hook Block Will Be Produced In 20 Days.

1.Blanking 2. Heating 3. Primary Forging
4. Second Bending 5. Die Forging 6. Normalizing
7.Sandblasting 8.Machining 9.Paintingassembly
Q: Do you provide the customized services?

A: Yes,we can make it according to your requirement.

Q: Will you provide the spreader drawing?

A: Yes,we will provide you drawing for your confirmation before production And drawing is free.

Q: What is the Delivery time for spreader?

A: Normal with 7-10 days.It depend on quantity and specification.
