Vacuum Lifter


Vacuum lifters are almost omnipotent: whether you need to stack boxes, load barrels onto trucks, stack metal sheets or wood, or move stones or furniture - using a vacuum lifter for handling is always your best handling solution. Using a vacuum lifter for transportation is faster, more ergonomic, and safer.

Vacuum lifter is an automatic lifting equipment. It has the characteristics of speed, safety, and convenience. It utilizes the principle of vacuum adsorption, using a vacuum pump or vacuum blower as a vacuum source to generate vacuum at the pad end, firmly sucking various workpieces, and transporting them to the designate position through a rotatable mechanical arm or crane.

Flagcrane is orient to factory automation and vacuum intelligent handling, and provides one-stop service of design, planning, manufacturing, installation, training and after-sales service for mechanical processing, glass curtain walls, glass deep processing, food processing, aluminum products, laser processing, automobile manufacturing, packaging logistics, stone processing, solar energy and other fields.

     Mail Us:info@cranespreader.com

Why Choose Flagcrane As Your Vacuum Lifter?

Flagcrane is a professional group company integrating crane design, manufacturing, sales, installation, after-sales and maintenance. which is located in Changyuan Crane Industrial Park, Henan Province, with a registered capital of 560 million yuan, covering an area of more than 850,000 square meters and a modern heavy steel production workshop of more than 400,000 square meters. There are more than 1,600 employees, including more than 200 middle and senior professional technicians and management personnel.

Flagcrane's equipment has passed ISO, CE, SGS, SABER and domestic and foreign other professional certification.

The spreaders manufactured by Flagcrane meet the standard and non-standard design and manufacture, and provide suitable solutions for different customers.

Features of Flagcrane Vacuum Lifter

1. Fast operation speed

The Vacuum energy is stored in the vacuum accumulator, and it can be transferred to the pad for instant absorption within one second; Within two seconds, the vacuum in the pad can return to one atmospheric pressure and be instantly released.

2. Safe adsorption, no damage to material surface

Vacuum spreaders mainly rely on a vacuum source to extract air from the inside of the pad to generate a vacuum. Generally, the materials of the pad include silicone, natural rubber, nitrile rubber, etc., which can achieve non-destructive handling or loading of materials such as plates and glass.

3. Use safety

The vacuum of the lifting appliance usually comes from the accumulator. In the event of a power outage in the vacuum pump, the energy reserve can maintain the load for several hours.

The vacuum degree is controllable. Sensors can display the situation of system leakage and load release. As long as there is an appropriate vacuum in the pad, the load will not fall. It's just a physical law.

4. Save time, effort, and cost

The use of vacuum hangers can reduce the number of employees in the storage area. Sucking and releasing can be completed by just one person: the crane operator. Regardless, reducing the number of workers engaged in difficult and dangerous work is possible and necessary.

Due to the fast handling of vacuum devices, cost savings lie in speed. The vacuum handling system does not leave any marks on the product, so it can handle materials that require careful handling.

5. Easy to operate

Due to the fact that the operation of the vacuum hanger is on top, it becomes easier to grasp, lower, and release. This is also one of the main advantages of using vacuum slings to transport things

Application of Flagcrane Vacuum Lifter

Vacuum lifters is widely use in mechanical processing, glass curtain walls, glass deep processing, food processing, aluminum products, laser processing, automobile manufacturing, packaging logistics, stone processing, solar energy and other fields.

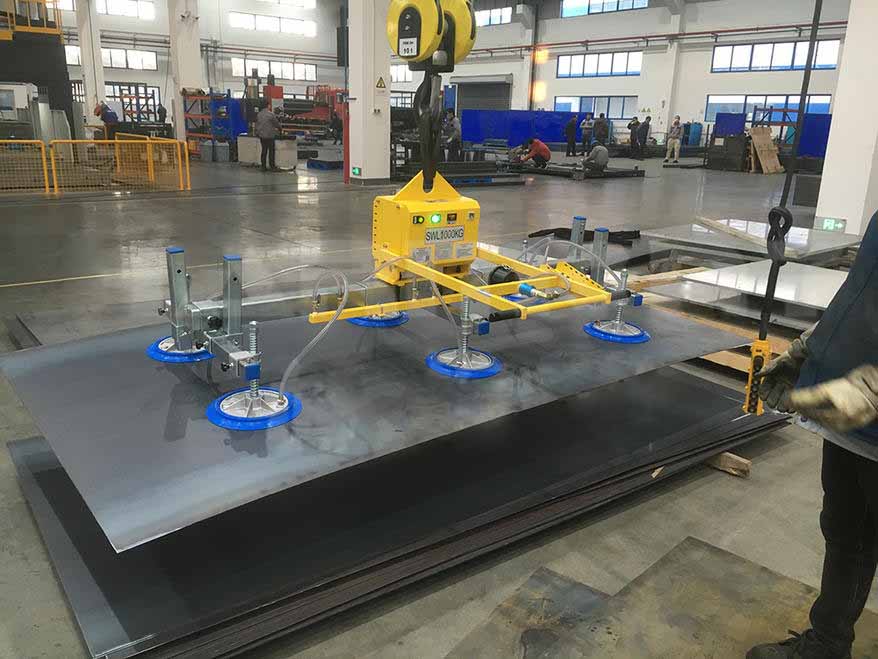

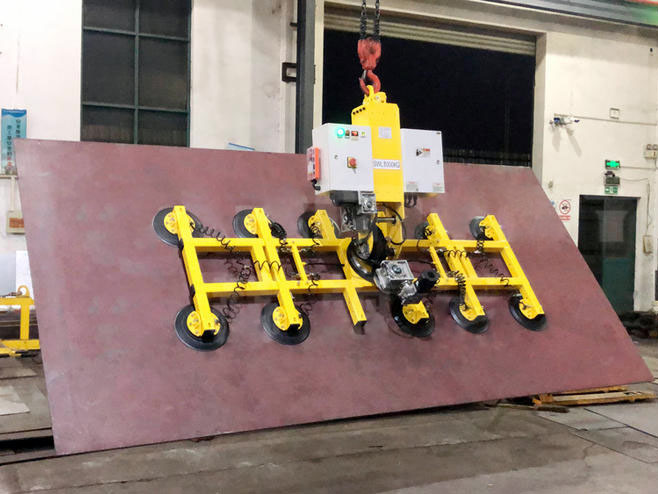

  1. Handling of iron plates, aluminum plates, steel plates, stone plates, etc., and loading with laser cutting machines.

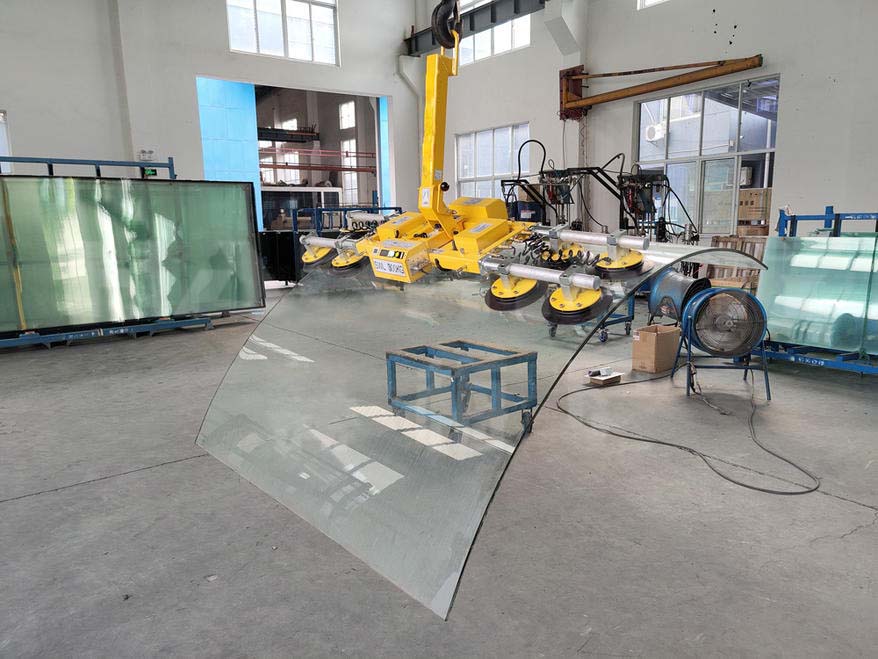

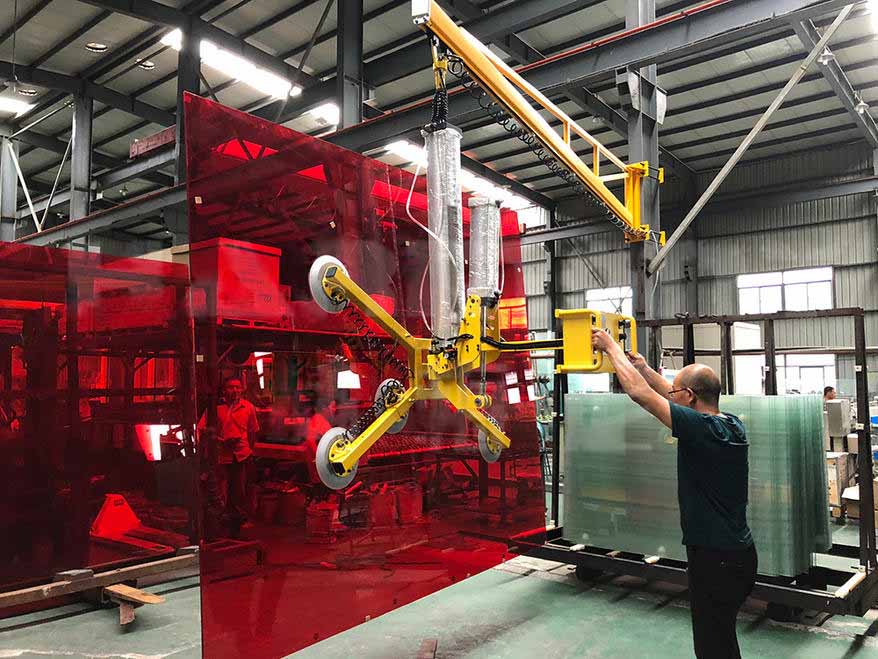

  2. Handling of various types of glass.
  3. Handling and loading of coil materials such as iron coils, steel coils, and aluminum coils.
  4. Handling and loading of iron pipes, steel pipes, and other pipes.
  5. Handling and loading of precast concrete components.
  6. Suitable for handling various materials with flat surfaces and regular shapes.

Vacuum Lifter Options




Coils and Customization vacuum lifter HFC-CC

Coils and Customization vacuum lifter HFC-CC

Electric flipping & rotating  vacuum lifter HFC-DFDX




Electric flipping and rotating vacuum lifter HFC-DFDX

Hydraulic flipping and rotation vacuum lifter HFC-YFYX

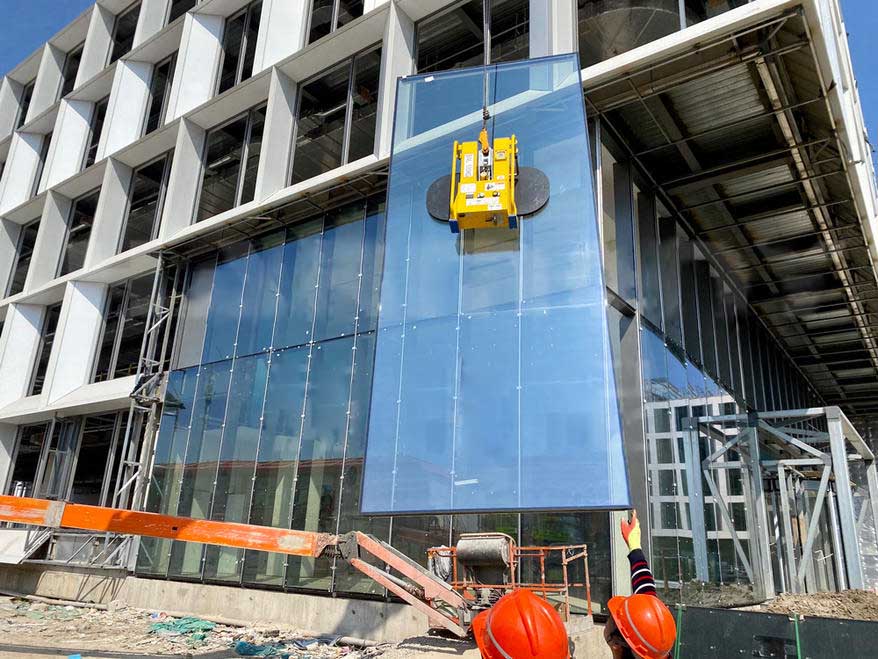

Large glass curtain wall vacuum lifter HFC-GH

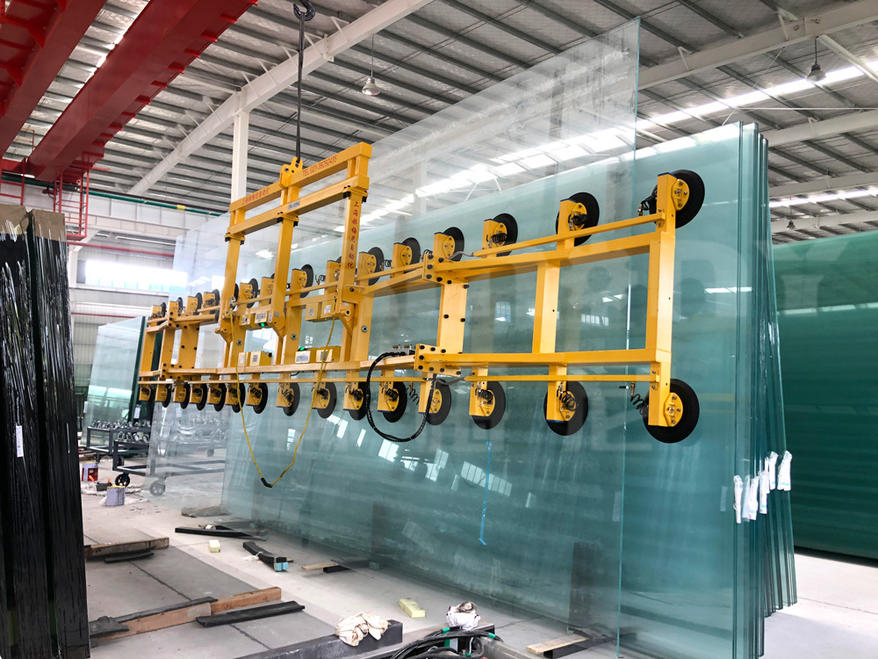

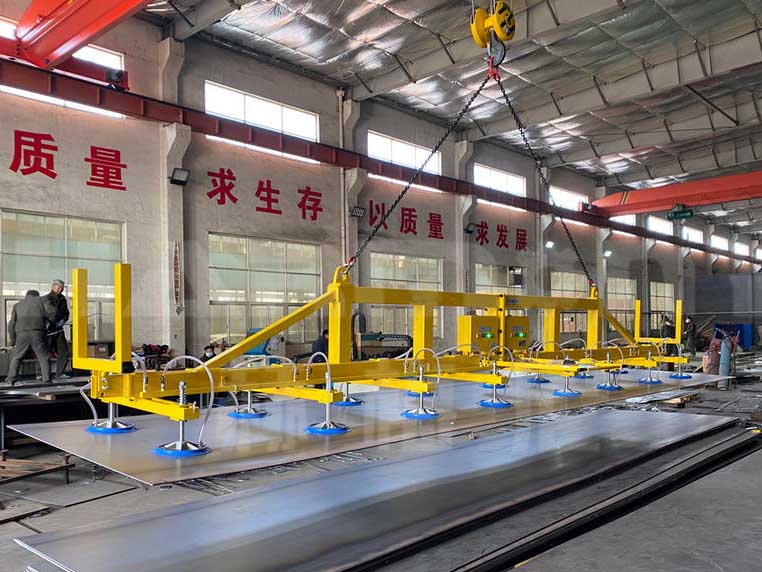

Large glass deep processing vacuum lifter HFC-GHQ Large plate vacuum lifter HFC-BL Lightweight glass curtain wall vacuum lifter HFC-GI




Small glass curtain wall vacuum lifter HFC-GX Small glass deep processing vacuum lifter HP-GFSmall plate vacuum lifter HFC-BS

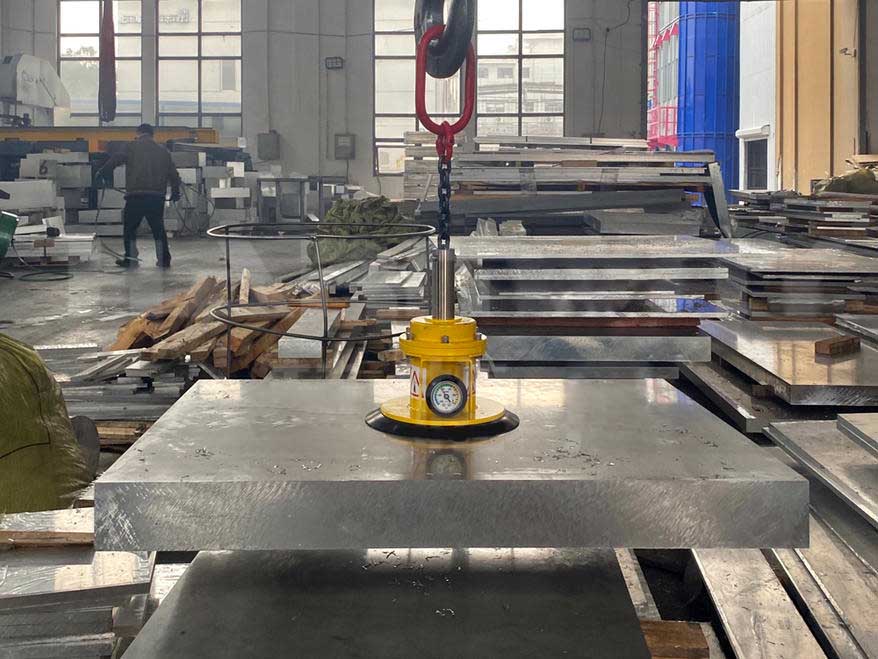

Dual pad unpowered vacuum lifter HFC-WDL1000-2S Multipurpose Lifting Tong Single pad unpowered vacuum lifter HFC-WDL80-1S




Single pad unpowered vacuum lifter HFC-WDL300-1S

Single pad unpowered vacuum lifter HFC-WDL800-1S

Six pad unpowered vacuum lifter HFC-WDL600-6S


Product&Model
Safety Loading
Size
Pad Diameter
Pad Number
Power System
Control Mode
Dead Load
HFC-BSJ500-6S
500kg
2000x800
Φ230
6
380V
Hand/Remote
100kg
HFC-BSZ500-6S
DC12V
HFC-BSQ500-6S
Air
HFC-BSJ1000-6S
1000kg
2000x800
Φ300
6
380V
Hand/Remote
110kg
HFC-BSZ1000-6S
DC12V
HFC-BSJ800-8S
800kg
2800x800
Φ230
8
380V
Hand/Remote
130kg
HFC-BSZ800-8S
DC12V
HFC-BSJ1500-8S
1500kg
2800x800
Φ300
8
380V
Hand/Remote
140kg
HFC-BSZ1500-8S
DC12V
HFC-BSJ1000-10S
1000kg
(1m+3m+1m)x1000
Φ230
10
380V
Hand/Remote
210kg
HFC-BSZ1000-10S
DC12V
HFC-BSJ2000-10S
2000kg
(1m+3m+1m)x1000
Φ300
10
380V
Hand/Remote
250kg
HFC-BSZ2000-10S
DC12V
HFC-BSJ2500-12S
2500kg
(1m+3m+1m)x1000
Φ300
12
380V
Hand/Remote

280kg
HFC-BSZ2500-12S
DC12V

A Standard Vacuum Lifter Will Be Produced In 20 Days.

1.Raw materials 2. Preprocessing 3. Lathing




4.Drilling 5.Welding 6.Assembling
1: How to place an order?

Answer: Tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible.

2: What is your price?

Answer: The price depends on your requirements for the equipment. According to the model, the price is relatively different.

3: How should I pay?

Answer: We accept wire transfer, letter of credit, etc.

4: How long do I need to order?

Answer: The standard vacuum lifter spreader, the delivery time is 7 days, custom-made orders, no stock, you need to determine the delivery time according to the situation, if you need urgent items, please contact customer service.

5: About the guarantee

Answer: Our machines enjoy a complete 1-year warranty, and important parts enjoy a 5-year warranty.

6: Mode of transportation

Answer: You can choose sea, air, rail transportation (FOB, CIF, CFR, EXW, etc.)
