Hoists

As a special equipment, the hoist has the characteristics of small size, light weight, simple operation and easy use.

The hoist is a kind of light and small lifting equipment, capacity：1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 16 ton, 20ton, up to 32 ton (Standardized), which is commonly installed on steel beam, also can be a lifting part of overhead crane, gantry crane or jib crane.etc.

Capacity: 0.5-100 ton (customized)

Lifting Height: 3-100m (customized)

Work Duty: M3, M4, M5

Rated Voltage: 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC (customized)

Hoist Mode: Wire Rope Hoist / Chain Hoist

Send Your Inquiry Now Mail Us:info@cranespreader.com

Why Choose Flagcrane As Your Hoists?

Flagcrane is a professional group company integrating crane design, manufacturing, sales, installation, after-sales and maintenance. which is located in Changyuan Crane Industrial Park, Henan Province, with a registered capital of 560 million yuan, covering an area of more than 850,000 square meters and a modern heavy steel production workshop of more than 400,000 square meters. There are more than 1,600 employees, including more than 200 middle and senior professional technicians and management personnel.

Flagcrane's equipment has passed ISO, CE, SGS, SABER and domestic and foreign other professional certification.

The spreaders manufactured by Flagcrane meet the standard and non-standard design and manufacture, and provide suitable solutions for different customers.

Send Your Inquiry Now

Factors to Consider When Selecting a Hoists

Choosing a suitable hoist needs to be based on factors such as environment and working conditions.

Lifting Capacity – Electric chain hoist is mainly used in under 32 ton, and the electric wire rope has a bigger capacity range. Also there are some electric hoist has a higher capacities, it is special for special applications. Here, we just briefly talk about the difference between them. For more information, you can just check it out from our engineers.
Application – Due to the structure of chain hoist, the chain must move up and down straightly. While, the rope run around the hoist drum in wire rope hoist, so it can hoist the load at certain angle.
Production Efficiency – The electric wire rope hoists has a faster lifting speed and a higher production efficiency.
Working Duty – Electric chain hoist has almost the same Working Duty compared with the electric wire rope hoists. In fact, due to the structure of gear and chain, it is not very suitable for very frequent use which will create heat in the gears and will wear out quickly.
Price – Generally speaking, chain hoist cost less than the corresponding electric wire rope hoists and has a less maintenance costs.

If you have any questions about the hoist price, desire to get a quote or want to make an inquiry or consult with us, please feel free to drop us a line, call or Contact Us via other channels. Moreover, if you are facing technical issues or need to discuss upgrades - we are always happy to help and provide guidance!

Send Your Inquiry Now

Application of Flagcrane Overhead Travelling Crane

As a common material handling equipment, usually, the hoist is used as lifting components of overhead crane, gantry crane, jib crane, etc.

It’s widely used in industrial and mining enterprises, warehouses, factories, mines, railways, ports, warehouses, docks and other places:

Loading or unloading materials from a truck
Moving materials around a facility more efficiently than a tow motor or manpower can
Flipping or pulling dies in and out of stamping machines at a manufacturing facility
Feeding raw material into a machine at a manufacturing facility
Moving pieces or parts down an assembly line in a controlled fashion
Moving containers around a shipyard or railyard
Moving goods or equipment in special areas such as mines, oil fields, power plants, and food workshops

Send Your Inquiry Now

Hoists Options


CD1 MD1 Wire Rope Electric Hoist	Electric Chain Hoist	FEM Standard Hoist/ European Type Hoist

Pneumatic Hoist/ Air Chain Hoist	Explosion Proof Electric Hoist	Low Headroom Electric Hoist

Metallurgical Electric Hoist	Clean Room Electric Hoist	Electric Hoist Trolley for Double

Video
Certification
Parameters
Production Process

Technical Data：

Item	Hoist Units	Capacity (standard)	Height (standard)	Control Method	Customized
1	CD1 MD1 Wire Rope Electric Hoist	0.5 - 32 ton	3~12 m	Pendant + Remoted(Optional)	Yes

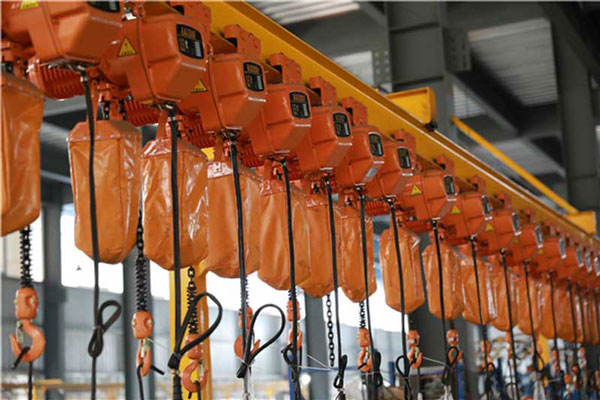

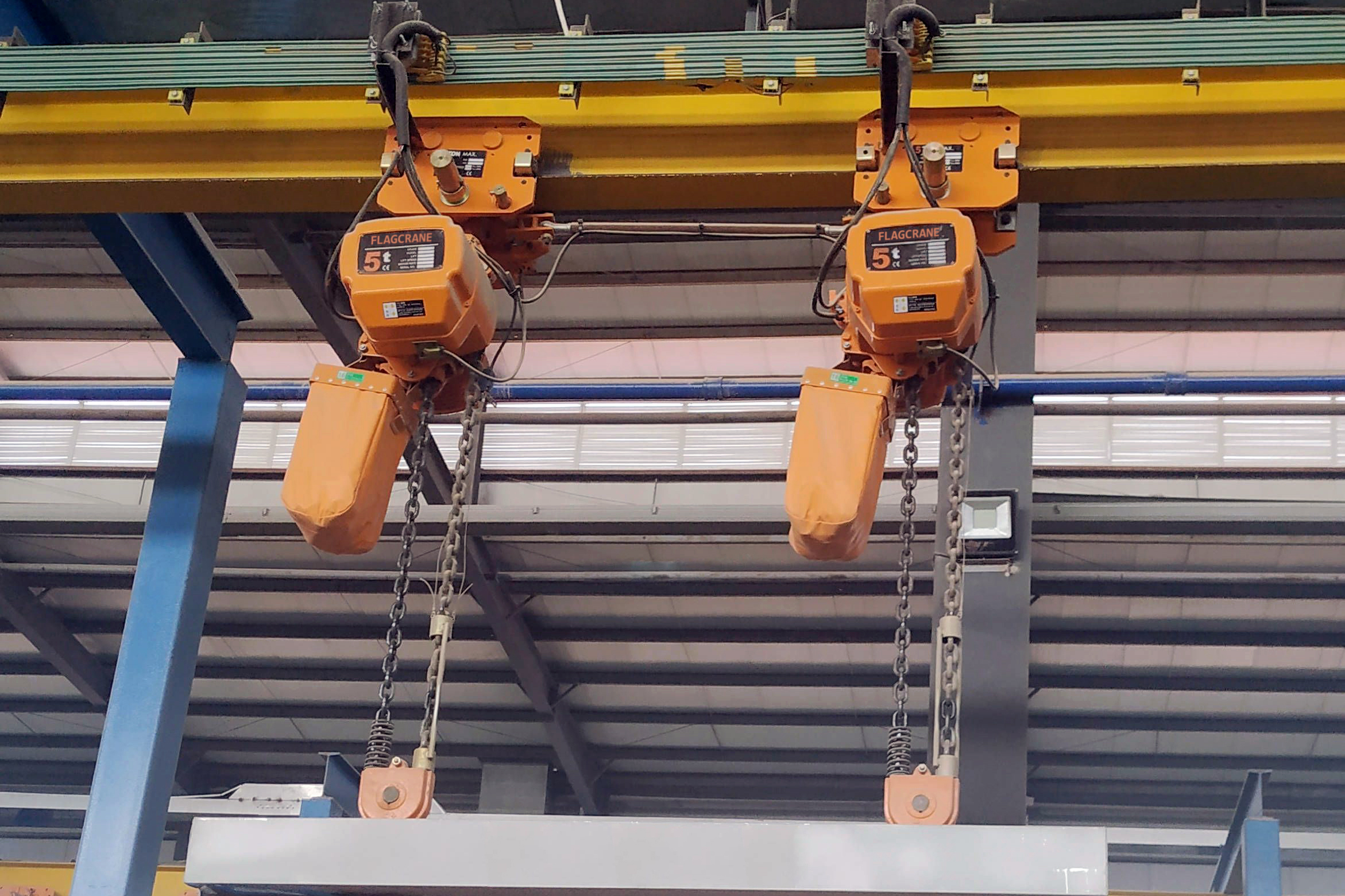

2	Electric Chain Hoist	0.5 - 25 ton	3m	Pendant + Remoted(Optional)	Yes

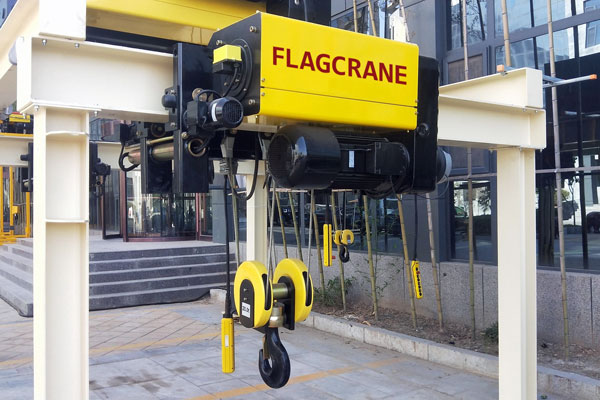

3	FEM Standard Hoist / European Type Hoist	0.5 - 20 ton	3~12 m	Pendant + Remoted(Optional)	Yes

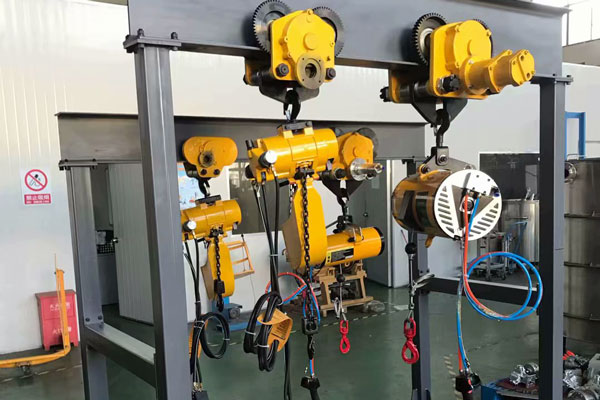

4	Pneumatic Hoist Air Chain Hoist	0.1 - 32 ton	3m	Pendant	Yes

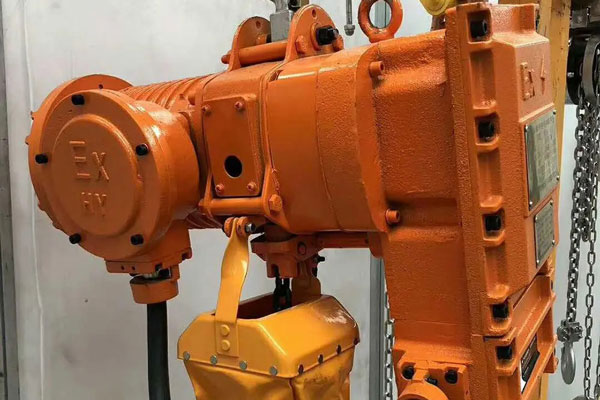

5	Explosion Proof Electric Hoist	0.5 - 32 ton	3~12 m	Pendant + Remoted(Optional)	Yes
6	Low Headroom Electric Hoist	0.5 - 32 ton	3~12 m	Pendant + Remoted(Optional)	Yes

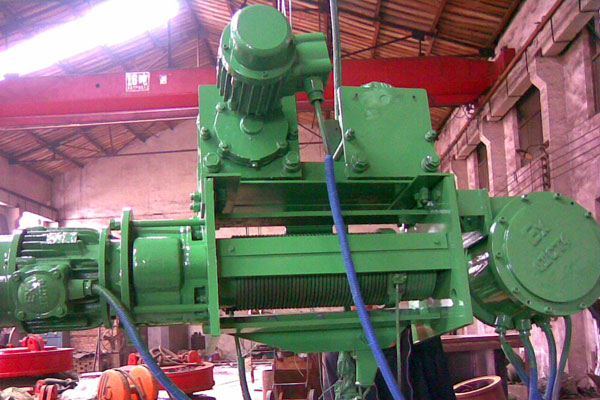

7	Metallurgical Electric Hoist	0.5 - 32 ton	3~12 m	Pendant + Remoted(Optional)	Yes
8	Clean Room Electric Hoist Dustproof Electric Hoist	0.25 - 50 ton	3m	Pendant + Remoted(Optional)	Yes

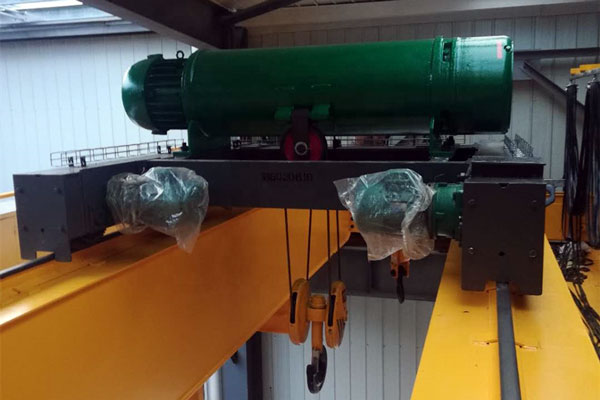

9	Electric Hoist Trolley for Double Girder Crane	5 - 50 ton	3~12 m	Pendant + Remoted(Optional)	Yes

Please note: Above specification just for your reference,our hoist can be Customized Design based on Your Requirements.

A Standard Hoists Will Be Produced In 7 Days.


1.Machine Processing	2.Sand Blasting & Rust Removal	3.Heat Treatment

4.Surface Treatment	5.Assembly	6.Painting & quality inspection

7.Testing	8.Packing & Delivery	9.Installation
