Rope Drum - Flagcrane


Rope drum is the most important accessories in the lifting equipment, it is responsible for winding the wire rope, bearing the tension and pressure of the lifted heavy objects, and realizing the lifting and handling of heavy objects with the cooperation of other relevant lifting mechanisms.

     Mail Us:info@cranespreader.com

Why Choose Flagcrane As Your Rope Drum?

Flagcrane is a professional group company integrating crane design, manufacturing, sales, installation, after-sales and maintenance. which is located in Changyuan Crane Industrial Park, Henan Province, with a registered capital of 560 million yuan, covering an area of more than 850,000 square meters and a modern heavy steel production workshop of more than 400,000 square meters. There are more than 1,600 employees, including more than 200 middle and senior professional technicians and management personnel.

Flagcrane's equipment has passed ISO, CE, SGS, SABER and domestic and foreign other professional certification.

The spreaders manufactured by Flagcrane meet the standard and non-standard design and manufacture, and provide suitable solutions for different customers.

Features of Flagcrane Rope Drum

1. Material: Q235 ,Q345 ,45#.

2. Heat treatment :hardening and tempering,high frequency quenching,carburizing quenching and so on

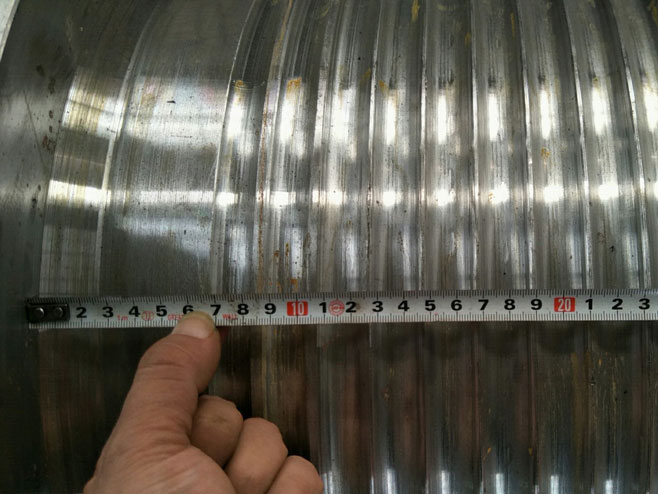

3. Groove surface quench: HRC45-55.

4. Groove surface quench depth: ≥2mm.

5. Max processing diameter: 2,000mm.

6. Inspection:all items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensue that best quality product goes out in the market.

Application of Flagcrane Rope Drum

Rope drum is widely used in all kinds of lifting equipment: single beam crane, double beam crane, gantry crane, port machinery, ship winch, winch, beam lifting machine, stereo garage, all terrain crane and other lifting equipment.

Rope Drum Options

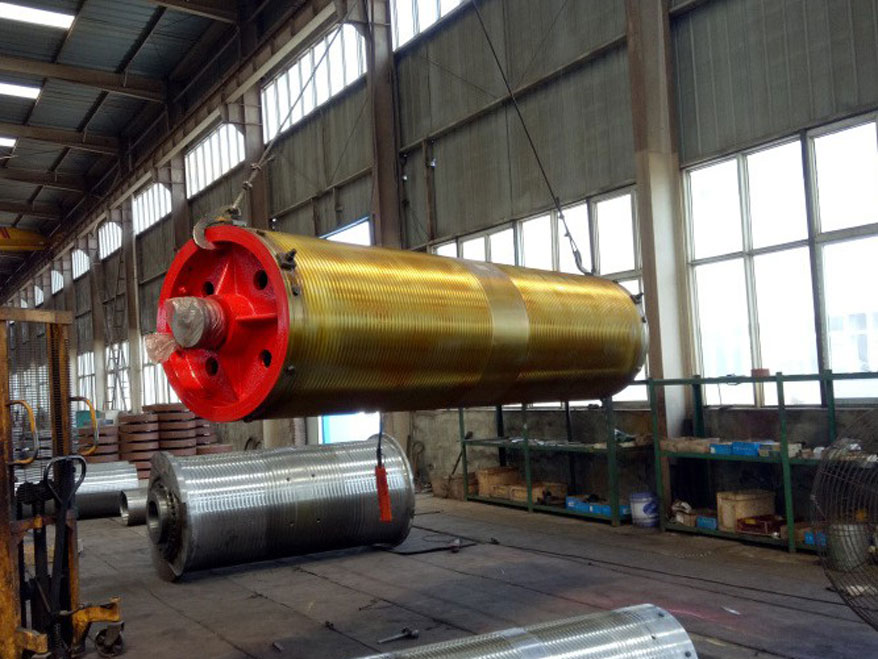

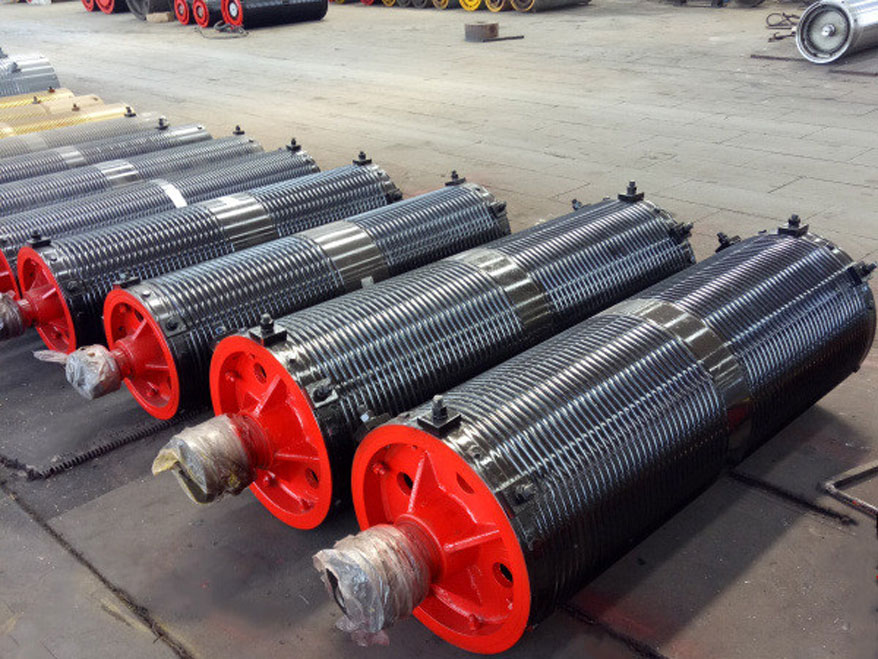

Port crane drum 1

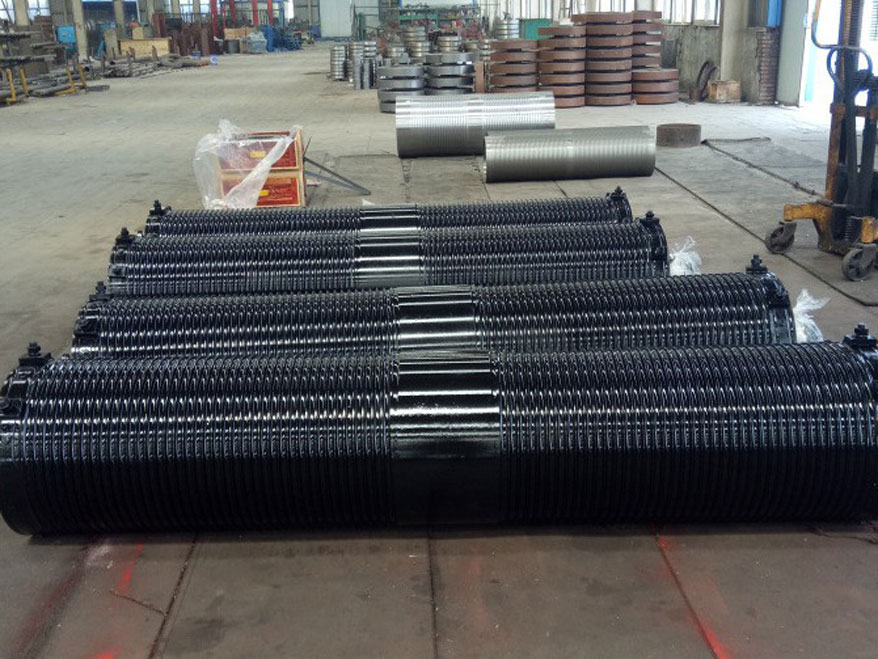

Port crane drum 2

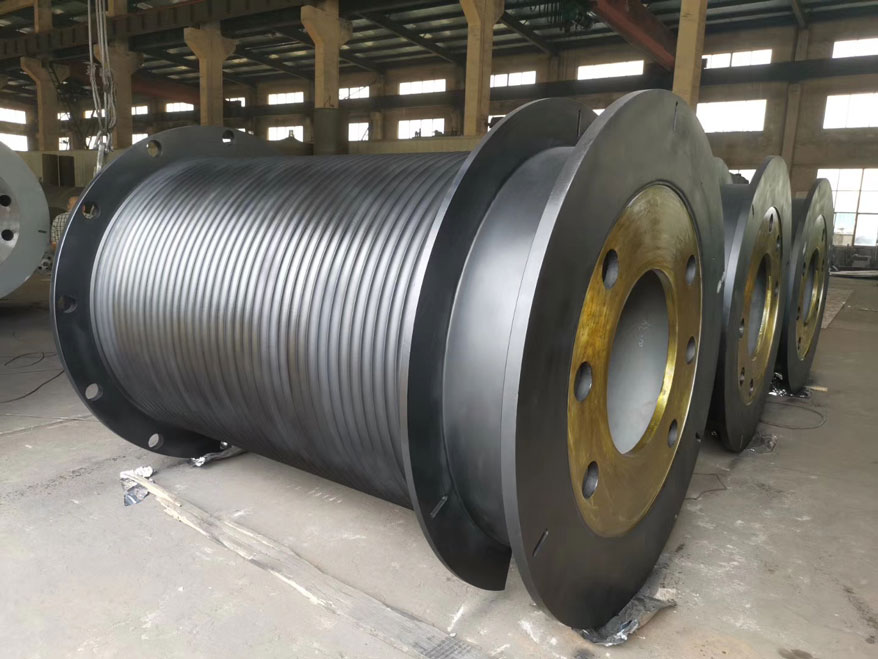

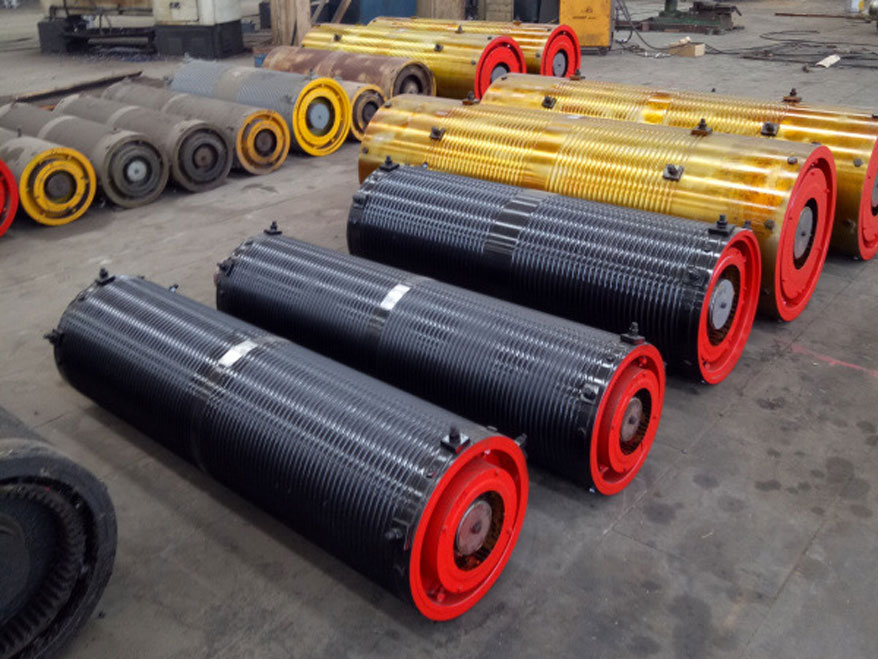

Crane drum



Technical Details

Diameter

Pitch

3t

Ø140mm

7.2

5t

Ø190mm

9

10t

Ø268mm

12.5

20t

Ø295mm

17

32t

Ø405mm

12.5

50t

Ø405mm

17

63t

Ø405mm

16

80t

Ø405mm

16

A Standard Rope Drum Will Be Produced In 20 Days.




1. CNC plasma cutting blanking 2. Rolling machine roll 3. Press machine shaping




4. Submerged Arc Welding CO2 Gas Shielded Welding 5. Lathe processing 6. Assembling




7. Drilling 8. Boring and milling key 9. Polishing and painting
1: How to place an order?

Answer: Tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible.

2: What is your price?

Answer: The price depends on your requirements for the equipment. According to the model, the price is relatively different.

3: How should I pay?

Answer: We accept wire transfer, letter of credit, etc.

4: How long do I need to order?

Answer: The standard vacuum lifter spreader, the delivery time is 7 days, custom-made orders, no stock, you need to determine the delivery time according to the situation, if you need urgent items, please contact customer service.

5: About the guarantee

Answer: Our machines enjoy a complete 1-year warranty, and important parts enjoy a 5-year warranty.

6: Mode of transportation

Answer: You can choose sea, air, rail transportation (FOB, CIF, CFR, EXW, etc.)
