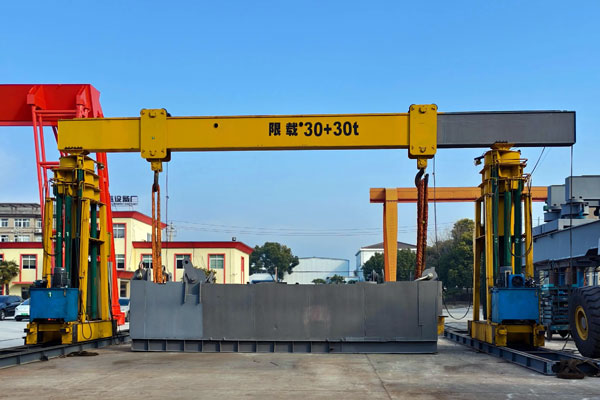

Gantry Crane

Gantry crane is an upgrade of Overhead Crane, mainly composed of the following parts: wheel, buffer, brake, wire rope, lifting hook, driver's cab, reducer, casting pulley, casting drum, motor, and electronic control equipment.etc.

Based on the professional crane knowledge in decades and the latest technology, Flagcrane will greatly improve your production safety and production efficiency. get your gantry crane price and solution here.contact us!

Capacity: 0.5- 800 ton

Span length: 2-50m

Lifting height: 3-30m

Work duty: A3, A4, A5, A6, A7, A8

Rated voltage: Manual/220V/380V/400V/415V/660V, 50-60Hz, 3ph AC

Crane control mode: Manual / Floor control / Remote control / Cabin room

Send Your Inquiry Now Mail Us:info@cranespreader.com

Why Choose Flagcrane As Your Gantry Crane?

Flagcrane is a professional group company integrating crane design, manufacturing, sales, installation, after-sales and maintenance. which is located in Changyuan Crane Industrial Park, Henan Province, with a registered capital of 560 million yuan, covering an area of more than 850,000 square meters and a modern heavy steel production workshop of more than 400,000 square meters. There are more than 1,600 employees, including more than 200 middle and senior professional technicians and management personnel.

Flagcrane's equipment has passed ISO, CE, SGS, SABER and domestic and foreign other professional certification.

The spreaders manufactured by Flagcrane meet the standard and non-standard design and manufacture, and provide suitable solutions for different customers.

Send Your Inquiry Now

Safety of Flagcrane Gantry Crane

1. Emergency switch can stop all movement when any dangerous happened.

2. Smooth starting and stopping,Overload protection.

3. Protective earthing.Main lifting motor with thermal protection.Sub-assemblies characteristic are tested before assembly.

4. All cranes must be pre-assembly and tested before leaving factory and offer the certification of test.

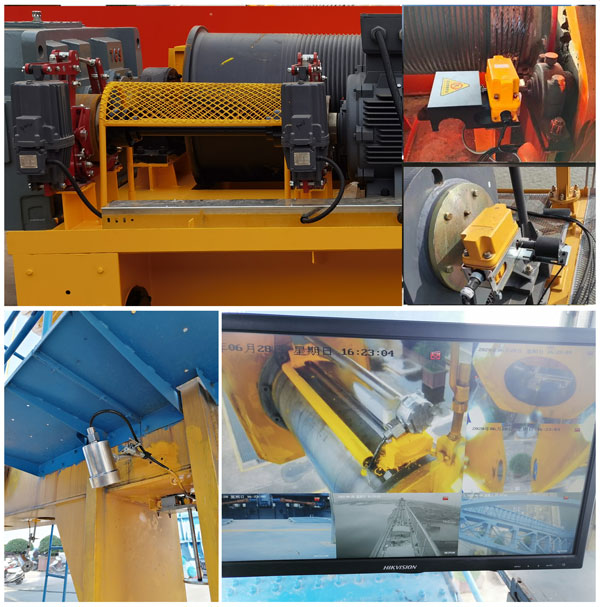

Safety Protection:

Lifting limit switch: Prevent the hook out of control when it has been lifted to the top position
Traveling limit switch: Stop the crane traveling smoothly when travel to the rail ends
Overload limiter: Prevent for the overload
Wire rope guide: Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping

We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices

Send Your Inquiry Now

Application of Flagcrane Gantry Crane

According to different needs and usage environments, our gantry cranes have different product types, such as: Double Girder Gantry Crane, Single Girder Gantry Crane, Semi Gantry Crane, Portable Gantry Crane, Aluminum Gantry Crane,etc.

Its are suitable for a wide range of industries, including but not limited to: Steel Industry, Automotive Industry, Energy Recycling Crane, Paper Making Industry, Power Station Industry, Shipbuilding Industry, Food Industry, Petrochemical Industry.

Gantry cranes can be equipped with different spreaders to adapt to more working conditions. The following spreaders are available for customization:

Crane C Hook for coil
Container Spreader
Special Hook（Electric rotation, casting, insulation, etc.）
Crane Electromagnet
Grab Bucket
Lifting Beam
Crane Lifting Tong

Send Your Inquiry Now

Gantry Crane Options


Gantry Crane Kits	Single Girder Gantry Crane	Double Girder Gantry Crane

Semi Gantry Crane	Rubber Tyred Gantry Crane	Mobile Portable Gantry Crane

Adjustable Aluminum Gantry Crane

Video
Certification
Parameters
Production Process

Item	Gantry Crane	Standard Capacity	Standard Span	Standard Height	Hoisting Unit	Customized Design
1	Single Girder Gantry Crane	1-32 ton	7.5~31.5 m	3~30 m	Electric Hoist, Manual Hoist, Electric Trolley	Yes
2	Double Girder Gantry Crane	5-800 ton	7.5~50 m	3~50 m	Electric Hoist Trolley, Electric Winch Trolley	Yes
3	Semi Gantry Crane	0.5-100 ton	7.5~40 m	3~30 m	Electric Hoist, Electric Hoist Trolley, Electric Winch Trolley	Yes
4	Mobile Portable Gantry Crane	0.5-20 ton	3~8 m	1~9 m	Electric Hoist, Manual Hoist	Yes
5	Aluminum Gantry Crane	0.25-10 ton	3~8 m	1~9 m	Electric Hoist, Manual Hoist	Yes
6	Adjustable Gantry Cranes	0.25-10 ton	3~8 m	1~9 m	Electric Hoist, Manual Hoist	Yes
7	Rubber Tyred Gantry Crane	5-50 ton	7.5~30 m	3~30 m	Electric Hoist Trolley, Electric Winch Trolley	Yes

Note: The lifting height and span need to be specially customized according to your use environment, so you need to provide this information to us, and we will give you the price.
