Features of billet spreader
The billet spreader has the advantages of no power consumption, no electromagnetic interference, safe and reliable use, and strong adaptability. Practice has proved that the steel billet spreader can freely load and unload the steel billet without the cooperation of ground personnel. It is an ideal billet loading and unloading tool.
The basic principle and working conditions of the clamp are introduced. When the clamp is working, the clamping and unloading of the billet is completed through the automatic clamping and placing device (sliding lifting mechanism) of the clamp by using a crane and a lifting device. The basic working principle of billet spreader is simple lever principle.
Under the operating conditions of the billet spreader, the temperature of the normal temperature type is not greater than 500 °C, and the temperature of the high temperature type is not greater than 1250 °C, which can be used indoors or outdoors. The difference between the clamping width and the clamping width is not more than 400mm, otherwise it is not safe. Lifting billet jig is specially designed for lifting billets with a thickness greater than 60mm, and is mainly used for lifting single-layer and multi-layer medium-thick plates and single-layer and multi-row billets.

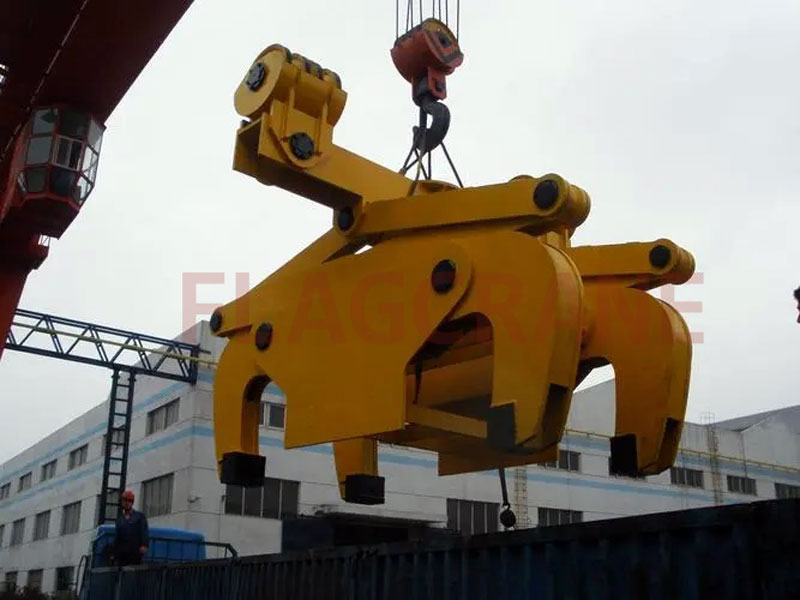

The billet hanger structure is composed of chains, lifting beams, curved connecting plates, hanger splints, automatic clamping devices, fixtures and other main components. The structure is small and there are few damage points. The utility model has simple structure and high reliability. The clamping of the billet is flexible and reliable. Fully mechanical automatic loading and unloading of billets, without electricity, is an environmentally friendly and energy-saving product. Each main joint adopts new technology of self-lubricating bearing (lifting capacity is 15x104n). Extended service life, maintenance-free. The hanger splint is made of alloy steel, the connecting shaft is made of 45# quenched and tempered steel, which has high strength, the jaw plate is made of special material, and has good high temperature resistance.
The technical performance of the billet spreader has been improved through the research and years of operation experience of Henan flag crane Co., ltd technicians. Flagcrane provides standard and non-standard cranes and spreaders that have passed third-party certification. Welcome to visit flagcrane's factory.
