Lifting Magnet / Lifting Electromagnet


Lifting magnet / lifting electromagnet is a kind of special spreader that absorbs magnetic materials through electromagnetic. It is composed of a steel shell and an excitation coil inside the shell. It is widely used in metallurgy, mining, machinery, transportation and other industries, and acts as an important tool for handling heavy steel objects. At the same time, it can also be used in many applications such as electromagnetic manipulator, uncoiler, coking furnace cover and so on. According to different types of objects to be sucked, lifting electromagnets with various structures are designed in different categories, which are highly targeted.

Flagcrane's lifting electromagnets are used in handling operations such as billets, round billets, steel plates, bundled bars, coiled wires, steel coils, and various types of scrap steel. Different lifting solutions are customized according to different steel plate profiles. No loss of magnetism, no damage to the workpiece, multiple electro-permanent magnet cranes can implement group control, saving time and improving work efficiency.

Send Your Inquiry Now     Mail Us:info@cranespreader.com

Why Choose Flagcrane As Your Lifting Magnet / Lifting Electromagnet?

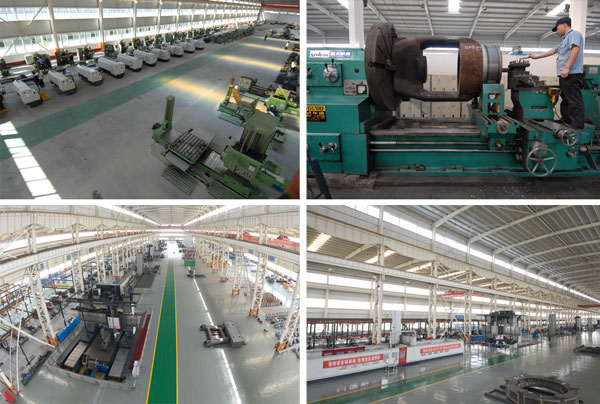

Flagcrane is a professional group company integrating crane design, manufacturing, sales, installation, after-sales and maintenance. which is located in Changyuan Crane Industrial Park, Henan Province, with a registered capital of 560 million yuan, covering an area of more than 850,000 square meters and a modern heavy steel production workshop of more than 400,000 square meters. There are more than 1,600 employees, including more than 200 middle and senior professional technicians and management personnel.

Flagcrane's equipment has passed ISO, CE, SGS, SABER and domestic and foreign other professional certification.

The spreaders manufactured by Flagcrane meet the standard and non-standard design and manufacture, and provide suitable solutions for different customers.

Send Your Inquiry Now

Features of Flagcrane Lifting Magnet / Lifting Electromagnet

  1. The magnetic material is made of high-quality carbon steel, which has high magnetic efficiency; the non-magnetic protective plate is made of rolled manganese plate, which has good magnetic isolation performance, strong wear resistance and impact resistance.
  2. The product adopts advanced fully sealed and waterproof design, which can absorb materials up to immersion.
  3. The electromagnet is optimized by computer simulation analysis, reasonable product structure, light weight, low energy consumption and strong suction.
  4. The coil is fixed with special filling material, which is resistant to high temperature, high humidity and severe impact. The maximum temperature of the absorbed object can reach 700°C.
  5. The outlet box adopts an internal and external double-cavity structure, which is waterproof and moisture-proof, and has excellent insulation, which can protect the internal coil from damage.
  6. The heat resistance grade of the insulation material of the electromagnetic coil reaches C grade, and the service life is long.
  7. The chain of the electromagnet has the function of anti-rotation.
  8. Provide complete sets of equipment such as control cabinets, cable reels, beams, etc., which are easy to install, operate and maintain.
Send Your Inquiry Now

Application of Flagcrane Lifting Magnet / Lifting Electromagnet

Lifting electromagnet applications include coal preparation, power plant coal transportation, metallurgy, iron and steel, metal mines, cement building materials, petrochemicals, shipbuilding, port transportation, brick and tile ceramics, glass, paper, grain, oil, food and railway logistics and other industries.

Send Your Inquiry Now

Lifting Magnet / Lifting Electromagnet Options

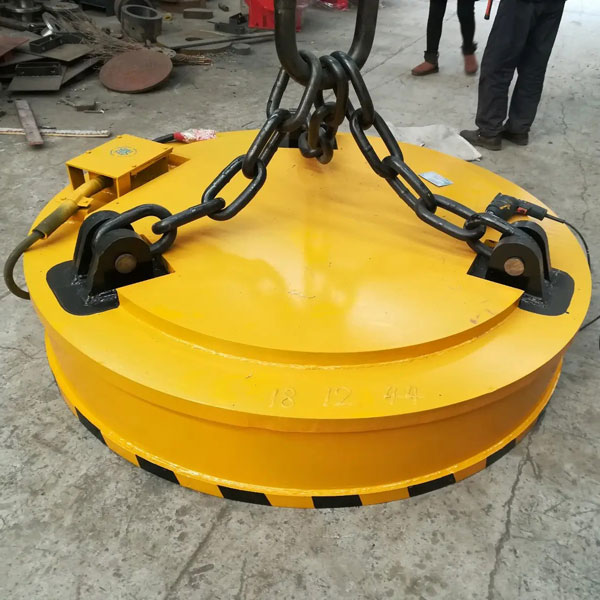

Circular Electro Lifting Magnet

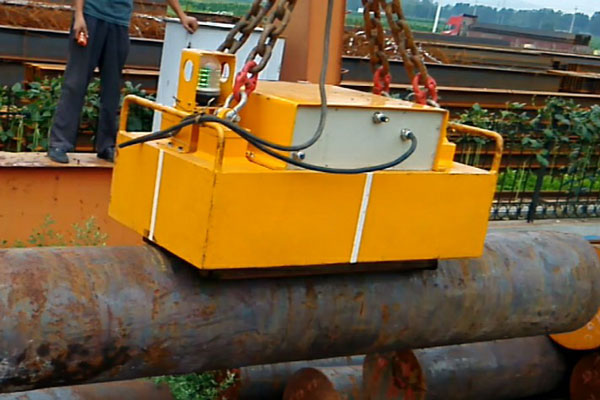

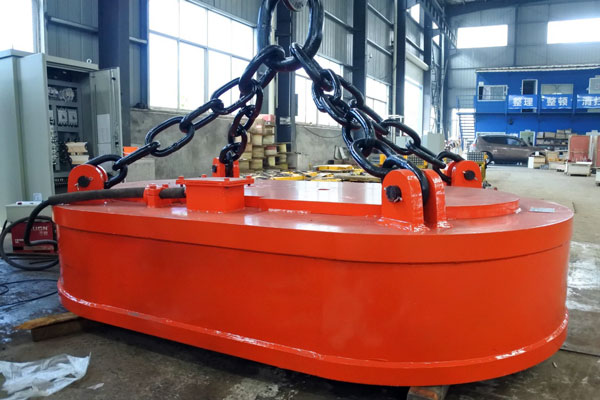

Rectangular Electro Lifting Magnet

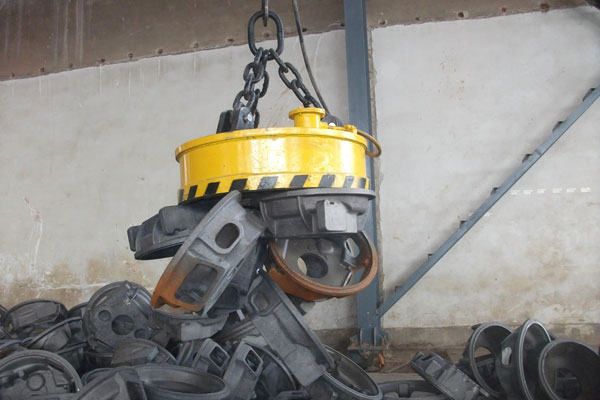

 electromagnet for scrap handling

Circular Electro Lifting Magnet

Rectangular Electro Lifting Magnet

Electromagnet for Scrap Handling
billet lifting electromagnet Lifting electromagnet for steel plate Reinforced lifting electromagnet

Billet Lifting Electromagnet

Lifting Electromagnet for Steel Plate

Reinforced Lifting Electromagnet
Coil lifting electromagnet Permanent Lifting Magnet Lifter Electromagnetic Hanging Beam

Coil Lifting Electromagnet

Permanent Lifting Magnet Lifter

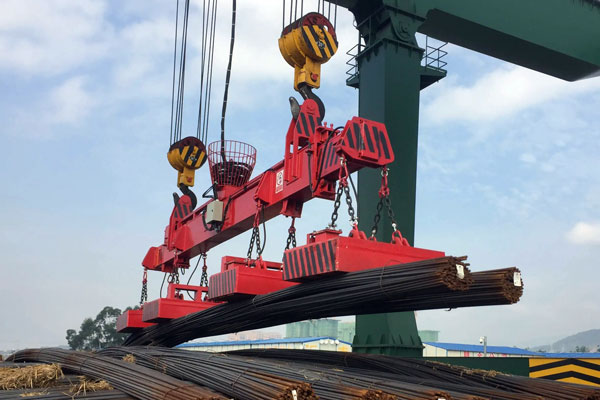

Electromagnetic Hanging Beam
Flip Lift Electromagnetic Hanging Beam Rotating Electromagnetic Hanging Beam Telescopic Lifting Hanging Beam

Flip Lift Electromagnetic Hanging Beam

Rotating Electromagnetic Hanging Beam

Telescopic Lifting Hanging Beam



Model

Electric Current
( A)

Power ( KW)

Capacity（ KG）

Weight
( KG)

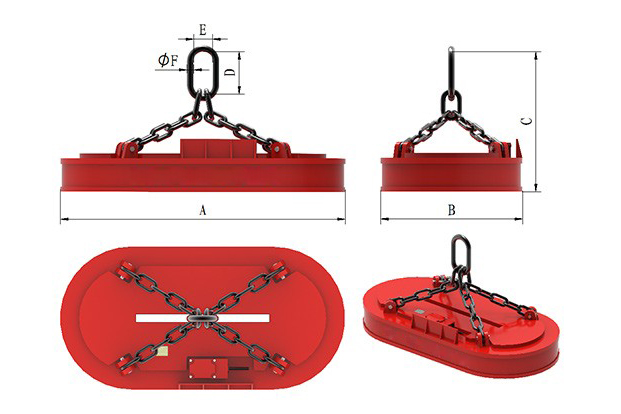

Dimensions（ mm）

Rectification Control Equipment

Cable Reel Cable Connector

Steel Ball

Steel Ingot

Cutting

A

B

C

D

E

MW5-70L/1

15

3.3

2500

380/200

120/100

490

700

800

160

90

30

STML-4E-C

JTA75-15-2
DL-102

MW5-80L/1

18

3.96

3000

480/250

150/130

620

800

800

160

90

30

STML-4E-C

MW5-90L/1

26.6

5.85

4500

600/400

250/200

800

900

1090

200

125

40

STQL-7E-C

MW5-110L/1

35

7.7

6500

1000/800

450/400

1350

1100

1140

220

150

45

STQL-9E-C

JTA100-15-2
DL-102

MW5-120L/1

45.5

10

7500

1300/1000

600/500

1700

1200

1180

220

150

45

STQL-14E-C

MW5-130L/1

54

11.9

8500

1400/1100

700/600

2060

1300

1240

250

175

50

STQL-14E-C

MW5-150L/1

71.2

15.6

11000

1900/1500

1100/900

2830

1500

1250

350

210

60

STQL-19E-C

MW5-165L/1

75

16.5

12500

2300/1800

1300/1100

3200

1650

1590

370

230

75

STQL-19E-C

MW5-180L/1

102.4

22.5

14500

2750/2100

1600/1350

4230

1800

1490

370

230

75

STQL-25E-C

JTA200-15-2
DL-202

MW5-210L/1

129

28.4

21000

3500/2800

2200/1850

7000

2100

1860

400

250

80

STQL-32E-C

MW5-240L/1

154

33.9

26000

4800/3800

2850/2250

9000

2400

2020

450

280

90

STQL-38E-C

A Standard Lifting Magnet / Lifting Electromagnet Will Be Produced In 20 Days.

1.Raw materials 2. Manufacture of parts 3. Assembly
4. Pouring with Insulating Glue 5. Drying& Cooling 6. Painting & Inspection
Related Products
Lifting Magnet / Lifting Electromagnet Lifting Magnet / Lifting Electromagnet
Q: Do you provide the customized services?

A: Yes,we can make it according to your requirement.

Q: Will you provide the spreader drawing?

A: Yes,we will provide you drawing for your confirmation before production And drawing is free.

Q: What is the Delivery time for spreader?

A: Normal with 7-10 days.It depend on quantity and specification.
